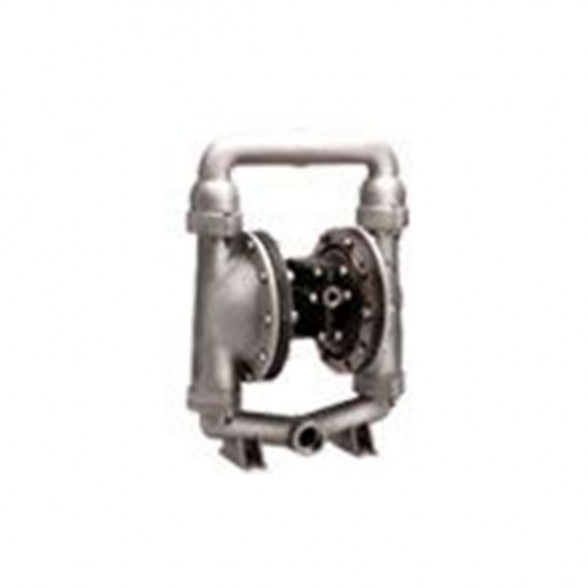

1-1/2" A150 Aluminum
Up to 130 GPM
Elastomer Available in: Geolast®, Santoprene®, PTFE, Viton
Liquid Connections Available in: FNPT, FBSPT
Max Solids: 1/4 Inch (6.4mm)
Max Suction Lift (Dry): 22ft-H20 (6.7m)
Max Suction Lift (Wet): 31ft-H20 (9.4m)
Air Inlet: 3/4 Inch FNPT
![]()
1-1/2" A150 Aluminum
| Part No. | Fluid End | Air End | Diaphragms | Valve/Ball | Valve Seats | O-Rings | Connection Type | Fluid Porting |
|---|---|---|---|---|---|---|---|---|
| A150-BAA-GGPN-B30 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BAA-GGPN-B40 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BAA-GTPN-B30 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | PTFEThermoplastic material that is inert to most chemicals. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BAA-GTPN-B40 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | PTFEThermoplastic material that is inert to most chemicals. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BAA-SSPE-B30 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BAA-SSPE-B40 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BAA-TTYT-B30 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | NylonA non-metallic material, suitable for most solvents and oils. | PTFEThermoplastic material that is inert to most chemicals. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BAA-TTYT-B40 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | NylonA non-metallic material, suitable for most solvents and oils. | PTFEThermoplastic material that is inert to most chemicals. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BAA-VVYV-B30 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | NylonA non-metallic material, suitable for most solvents and oils. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BAA-VVYV-B40 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | NylonA non-metallic material, suitable for most solvents and oils. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-NAA-GGPN-B30 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | NPT | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-NAA-GGPN-B40 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | NPT | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-NAA-GTPN-B30 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | PTFEThermoplastic material that is inert to most chemicals. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | NPT | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-NAA-GTPN-B40 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | PTFEThermoplastic material that is inert to most chemicals. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | NPT | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-NAA-SSPE-B30 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | NPT | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-NAA-SSPE-B40 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | NPT | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-NAA-TTYT-B30 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | NylonA non-metallic material, suitable for most solvents and oils. | PTFEThermoplastic material that is inert to most chemicals. | NPT | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-NAA-TTYT-B40 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | NylonA non-metallic material, suitable for most solvents and oils. | PTFEThermoplastic material that is inert to most chemicals. | NPT | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-NAA-VVYV-B30 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | NylonA non-metallic material, suitable for most solvents and oils. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | NPT | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-NAA-VVYV-B40 | AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. | AluminumAluminum | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | NylonA non-metallic material, suitable for most solvents and oils. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | NPT | Suction Center Front/Discharge Center Rear |
1-1/2" A150 Stainless Steel
Up to 130 GPM
Elastomer Available in: Geolast®, Santoprene®, PTFE, Viton
Liquid Connections Available in: ANSI/DIN Flange, FNPT, FBSPT
Max Solids: 1/4 Inch (6.4mm)
Max Suction Lift (Dry): 22ft-H20 (6.7m)
Max Suction Lift (Wet): 31ft-H20 (9.4m)
Air Inlet: 3/4 Inch FNPT
1-1/2" A150 Stainless Steel
| Part No. | Fluid End | Air End | Diaphragms | Valve/Ball | Valve Seats | O-Rings | Connection Type | Fluid Porting |
|---|---|---|---|---|---|---|---|---|
| A150-B33-GG3N-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-B33-GG3N-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-B33-SS3E-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-B33-SS3E-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-B33-TT3T-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | PTFEThermoplastic material that is inert to most chemicals. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-B33-TT3T-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | PTFEThermoplastic material that is inert to most chemicals. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-B33-VV3V-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-B33-VV3V-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BA3-GG3N-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | AluminumAluminum | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BA3-SS3E-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | AluminumAluminum | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BA3-SS3E-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | AluminumAluminum | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BA3-TT3T-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | AluminumAluminum | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | PTFEThermoplastic material that is inert to most chemicals. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BA3-TT3T-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | AluminumAluminum | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | PTFEThermoplastic material that is inert to most chemicals. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BA3-VV3V-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | AluminumAluminum | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-BA3-VV3V-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | AluminumAluminum | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | BSPBSP Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-F33-GG3N-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-F33-GG3N-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-F33-SS3E-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-F33-SS3E-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-F33-TT3T-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | PTFEThermoplastic material that is inert to most chemicals. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-F33-TT3T-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | PTFEThermoplastic material that is inert to most chemicals. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-F33-VV3V-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-F33-VV3V-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Stainless SteelStainless Steel | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-FA3-GG3N-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | AluminumAluminum | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-FA3-GG3N-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | AluminumAluminum | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-FA3-SS3E-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | AluminumAluminum | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-FA3-SS3E-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | AluminumAluminum | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-FA3-TT3T-B70 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | AluminumAluminum | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | PTFEThermoplastic material that is inert to most chemicals. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear |
| A150-FA3-TT3T-B80 | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | AluminumAluminum | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | PTFEThermoplastic material that is inert to most chemicals. | ANSI / DIN FlangeANSI / DIN Flange Connection | Suction Center Front/Discharge Center Rear |
