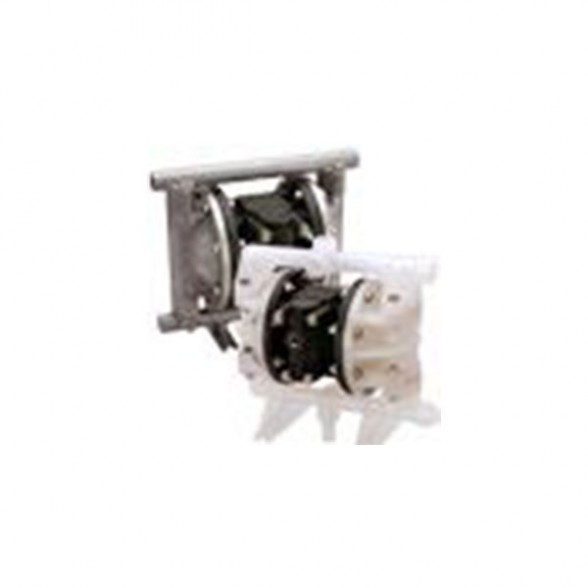

ALL-FLO 1/2" AIR DIAPHRAGM PUMP > AOD 펌프

홈으로 즐겨찾기
  • 블로그바로가기
  • 건아테크명함
리뷰 0 위시 3

ALL-FLO 1/2" AIR DIAPHRAGM PUMP 요약정보 및 구매

판매가격 전화문의
배송비결제 주문시 결제

상품 정보

상품 상세설명


1/2” A050 Aluminum

Up to 17 GPM

Elastomer Available in: Geolast®, Santoprene®, PTFE, Viton
Liquid Connections Available in: FNPT, FBSPT
Max Solids: 1/8 Inch (3.2mm)
Max Suction Lift (Dry): 15ft-H20 (4.5m)
Max Suction Lift (Wet): 31ft-H20 (9.4m)
Air Inlet: ¼ Inch FNPT

1/2” A050 Aluminum

Part No.Fluid EndAir EndDiaphragmsValve/BallValve SeatsO-RingsConnection TypeFluid Porting
A050-BAA-GGPN-S30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.BSPBSP ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-BAA-GTPN-S30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PTFEThermoplastic material that is inert to most chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.BSPBSP ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-BAA-SSPE-S30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumSantoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. BSPBSP ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-BAA-TTYT-S30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumPTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. NylonA non-metallic material, suitable for most solvents and oils. PTFEThermoplastic material that is inert to most chemicals. BSPBSP ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-BAA-VVYV-S30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumViton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NylonA non-metallic material, suitable for most solvents and oils. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. BSPBSP ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-NAA-GGPN-S30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPTSuction Right/Discharge RightSuction Right/Discharge Right
A050-NAA-GTPN-S30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PTFEThermoplastic material that is inert to most chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPTSuction Right/Discharge RightSuction Right/Discharge Right
A050-NAA-SSAE-S30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumSantoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. EPDMGeneral purpose elastomer with good resistance to many acids and basis. NPTSuction Right/Discharge RightSuction Right/Discharge Right
A050-NAA-SSPE-S30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumSantoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. NPTSuction Right/Discharge RightSuction Right/Discharge Right
A050-NAA-TTYT-S30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumPTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. NylonA non-metallic material, suitable for most solvents and oils. PTFEThermoplastic material that is inert to most chemicals. NPTSuction Right/Discharge RightSuction Right/Discharge Right
A050-NAA-VVYV-S30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumViton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NylonA non-metallic material, suitable for most solvents and oils. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NPTSuction Right/Discharge Right

1/2” A050 Stainless Steel

Up to 17 GPM

Elastomer Available in: Geolast®, Santoprene®, PTFE, Viton
Liquid Connections Available in: FNPT, FBSPT
Max Solids: 1/8 Inch (3.2mm)
Max Suction Lift (Dry): 15ft-H20 (4.5m)
Max Suction Lift (Wet): 31ft-H20 (9.4m)
Air Inlet: ¼ Inch FNPT

1/2” A050 Stainless Steel

Part No.Fluid EndAir EndDiaphragmsValve/BallValve SeatsO-RingsConnection TypeFluid Porting
A050-BA3-GG3N-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.BSPBSP ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-BA3-GT3N-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PTFEThermoplastic material that is inert to most chemicals. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.BSPBSP ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-BA3-SS3E-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumSantoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. BSPBSP ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-BA3-TT3T-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumPTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. PTFEThermoplastic material that is inert to most chemicals. BSPBSP ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-BA3-VV3V-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumViton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. BSPBSP ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-BP3-GG3N-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.BSPBSP ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-BP3-SS3E-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. BSPBSP ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-BP3-TT3T-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. PTFEThermoplastic material that is inert to most chemicals. BSPBSP ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-NA3-GG3N-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPTSuction Right/Discharge RightSuction Right/Discharge Right
A050-NA3-GT3N-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PTFEThermoplastic material that is inert to most chemicals. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPTSuction Right/Discharge RightSuction Right/Discharge Right
A050-NA3-SS3E-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumSantoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. NPTSuction Right/Discharge RightSuction Right/Discharge Right
A050-NA3-TT3T-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumPTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. PTFEThermoplastic material that is inert to most chemicals. NPTSuction Right/Discharge RightSuction Right/Discharge Right
A050-NA3-VV3V-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumViton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NPTSuction Right/Discharge RightSuction Right/Discharge Right
A050-NP3-GG3N-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPTSuction Right/Discharge RightSuction Right/Discharge Right
A050-NP3-TT3T-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. PTFEThermoplastic material that is inert to most chemicals. NPTSuction Right/Discharge RightSuction Right/Discharge Right
A050-NP3-VV3V-S70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NPTSuction Right/Discharge Right

1/2” A050 Polypropylene

Up to 17 GPM

Elastomer Available in: Geolast®, Santoprene®, PTFE, Viton
Liquid Connections Available in: FNPT, FBSPT
Max Solids: 1/8 Inch (3.2mm)
Max Suction Lift (Dry): 15ft-H20 (4.5m)
Max Suction Lift (Wet): 26ft-H20 (7.9m)
Air Inlet: ¼ Inch FNPT

1/2” A050 Polypropylene

Part No.Fluid EndAir EndDiaphragmsValve/BallValve SeatsO-RingsConnection TypeFluid Porting
A050-SPP-GGPN-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPT (BSP)NPT(BSP) ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A050-SPP-SSPE-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. NPT (BSP)NPT(BSP) ConnectionSuction Right/Discharge Right (NPT/BSP Only)Suction Right/Discharge Right (NPT/BSP Only)
A050-SPP-SSPE-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. NPT (BSP)NPT(BSP) ConnectionSuction Left/ Discharge Left (NPT/BSP Only)Suction Left/ Discharge Left (NPT/BSP Only)
A050-SPP-TTPT-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. PTFEThermoplastic material that is inert to most chemicals. NPT (BSP)NPT(BSP) ConnectionSuction Right/Discharge Right (NPT/BSP Only)Suction Right/Discharge Right (NPT/BSP Only)
A050-SPP-VVPV-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NPT (BSP)NPT(BSP) ConnectionSuction Right/Discharge Right (NPT/BSP Only)

1/2” C050 Clamped Polypropylene

Up to 17 GPM

Elastomer Available in: Geolast®, Santoprene®, PTFE, Viton
Liquid Connections Available in: FNPT, FBSPT
Max Solids: 1/8 Inch (3.2mm)
Max Suction Lift (Dry): 15ft-H20 (4.5m)
Max Suction Lift (Wet): 26ft-H20 (7.9m)
Air Inlet: ¼ Inch FNPT

1/2” C050 Clamped Polypropylene

Part No.Fluid EndAir EndDiaphragmsValve/BallValve SeatsO-RingsConnection TypeFluid Porting
C050-SPK-TTKT-G70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. PTFEThermoplastic material that is inert to most chemicals. NPT (BSP)NPT(BSP) ConnectionSuction Center Rear/Discharge Center RearSuction Center Rear/Discharge Center Rear
C050-SPP-GGPN-G70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPT (BSP)NPT(BSP) ConnectionSuction Center Rear/Discharge Center RearSuction Center Rear/Discharge Center Rear
C050-SPP-SSPE-G70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. NPT (BSP)NPT(BSP) ConnectionSuction Center Rear/Discharge Center RearSuction Center Rear/Discharge Center Rear
C050-SPP-TTPT-G70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. PTFEThermoplastic material that is inert to most chemicals. NPT (BSP)NPT(BSP) ConnectionSuction Center Rear/Discharge Center RearSuction Center Rear/Discharge Center Rear
C050-SPP-VVPV-G70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NPT (BSP)NPT(BSP) ConnectionSuction Center Rear/Discharge Center Rear

1/2” A050 PVDF

Up to 17 GPM

Elastomer Available in: Santoprene®, PTFE, Viton
Liquid Connections Available in: FNPT, FBSPT
Max Solids: 1/8 Inch (3.2mm)
Max Suction Lift (Dry): 15ft-H20 (4.5m)
Max Suction Lift (Wet): 26ft-H20 (7.9m)
Air Inlet: ¼ Inch FNPT

1/2” A050 PVDF

Part No.Fluid EndAir EndDiaphragmsValve/BallValve SeatsO-RingsConnection TypeFluid Porting
A050-SPK-SSKE-S70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. EPDMGeneral purpose elastomer with good resistance to many acids and basis. NPT (BSP)NPT(BSP) ConnectionSuction Right/Discharge Right (NPT/BSP Only)Suction Right/Discharge Right (NPT/BSP Only)
A050-SPK-TTKT-S70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. PTFEThermoplastic material that is inert to most chemicals. NPT (BSP)NPT(BSP) ConnectionSuction Right/Discharge Right (NPT/BSP Only)Suction Right/Discharge Right (NPT/BSP Only)
A050-SPK-VVKV-S70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Polypropylene (Glass filled)Polypropylene (Glass filled)Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NPT (BSP)NPT(BSP) ConnectionSuction Right/Discharge Right (NPT/BSP Only)

1/2” C050 Clamped PVDF

Up to 17 GPM

Elastomer Available in: Santoprene®, PTFE, Viton
Liquid Connections Available in: FNPT, FBSPT
Max Solids: 1/8 Inch (3.2mm)
Max Suction Lift (Dry): 15ft-H20 (4.5m)
Max Suction Lift (Wet): 26ft-H20 (7.9m)
Air Inlet: ¼ Inch FNPT

1/2” C050 Clamped PVDF

Part No.Fluid EndAir EndDiaphragmsValve/BallValve SeatsO-RingsConnection TypeFluid Porting
C050-SPK-SSKE-G70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. EPDMGeneral purpose elastomer with good resistance to many acids and basis. NPT (BSP)NPT(BSP) ConnectionSuction Center Rear/Discharge Center RearSuction Center Rear/Discharge Center Rear
C050-SPK-VVKV-G70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Polypropylene (Glass filled)Polypropylene (Glass filled)Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NPT (BSP)NPT(BSP) ConnectionSuction Bottom/Discharge Center Rear

1/2” A050 Conductive Nylon

Up to 17 GPM

Elastomer Available in: Geolast®, PTFE, Viton
Liquid Connections Available in: FNPT, FBSPT
Max Solids: 1/8 Inch (3.2mm)
Max Suction Lift (Dry): 15ft-H20 (4.5m)
Max Suction Lift (Wet): 26ft-H20 (7.9m)
Air Inlet: ¼ Inch FNPT

1/2” A050 Conductive Nylon

Part No.Fluid EndAir EndDiaphragmsValve/BallValve SeatsO-RingsConnection TypeFluid Porting
A050-SPY-GN3N-SF0Conductive Nylon Stainless Steel filled Nylon, suitable for most solvents and alcohols. Polypropylene (Glass filled)Polypropylene (Glass filled)Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPT (BSP)NPT(BSP) ConnectionSuction Right/Discharge Right (NPT/BSP Only)Suction Right/Discharge Right (NPT/BSP Only)
A050-SPY-TT3T-SF0Conductive Nylon Stainless Steel filled Nylon, suitable for most solvents and alcohols. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. PTFEThermoplastic material that is inert to most chemicals. NPT (BSP)NPT(BSP) ConnectionSuction Right/Discharge Right (NPT/BSP Only)Suction Right/Discharge Right (NPT/BSP Only)
A050-SPY-VV3V-SF0
