1/2 인치(12.7 mm)의 허스키 515 이중 다이어프램 펌프는 20 psi(1.4 bar, 0.14 MPa)의 낮은 압력에서 작동하며 접지형 아세탈, 폴리프로필렌 및 PVDF 재질의 구조로 제공됩니다.
관련 링크

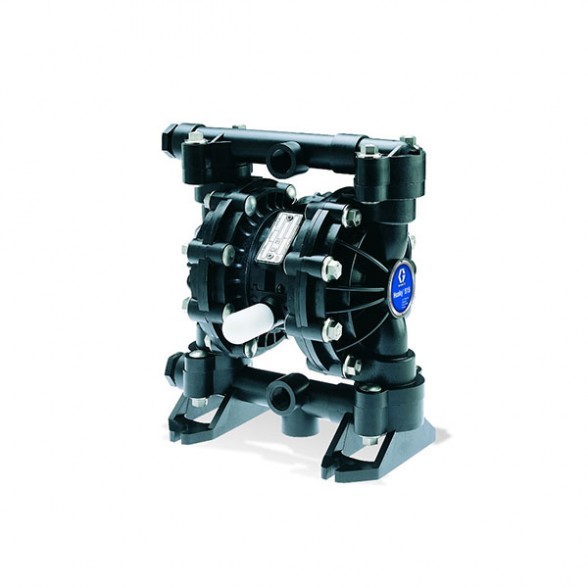

The Husky 515 air operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes that this Husky providing better safety and more reliability.
Benefits of the Husky 515 double diaphragm pump
- Center- and end-porting
- No mechanical seals to causes fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
| Overview | |
| Maximum fluid flow | 15 gpm (57 l/min) |
| Maximum Fluid Discharge Pressure | 100 psi (7 bars, 0.7 MPa) |
| Maximum size pumpable solids | 3/32 in (2.5 mm) |
| Fluid displacement per cycle | 0.04 g (0,15 liter) |
Husky 515 Performance
Looking for a repair kit? Use our pump configuration tools to select the repair kit for your pump:
- Step 1 – Go to our Pump Selector Tool
- Step 2 – Fill in your pumps part number in the right corner
- Step 3 – Get an overview of all repair kits and accessories for your pump
