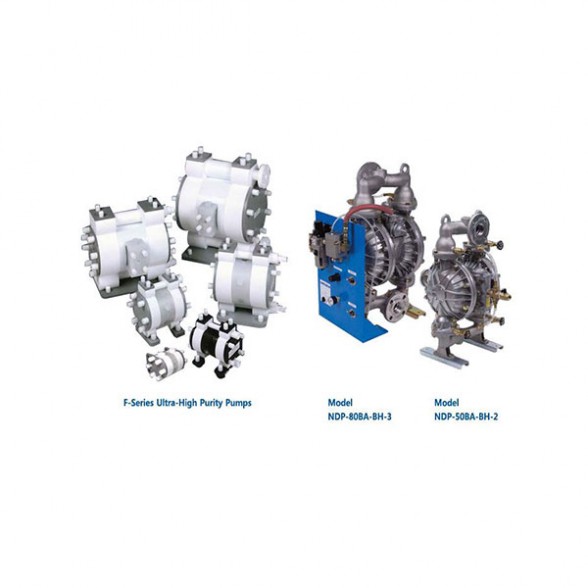

The DP-F Series pump range offers 5 different sized models of clean room menufactured process pumps suitable for high purity and corrosive applications. Utilizing the patented Yamada C-Spool these pumps are simple and easily installed into a process system.





DP-5F


DP-10F


DP-20F





DP-25FDP-38F



Specification



Model nameDP-5F※1DP-10FDP-20FDP-25F
※2
DP-38F
※2
Nominal port size1/4″(8A)3/8″(10A)3/4″(20A)1″(25A)1″(25A)

Connection to liquid

InletRc1/4(F)Rc3/8(F)
※3
JIS 10A
flange or
equivalent
Rc3/4(F)
※3
JIS 20A
flange or
equivalent
JIS 25A
flange or
equivalent
Outlet

エア接続※5

Inlet
(エアコック付)
Rc1/4(F)Rc3/8(F) Rc1/2(F)
ExhaustRc3/8(F)
(silencer contained)
Rc3/8(F)
(silencer contained)
Rc3/4(F)
(silencer contained)

 Material

Wetted bodyFluoric resin
(PTFE,PFA)
Diaphragm, Valve, SeatFluoric resin
(PTFE)
Non Wetted bodyPPS resinPolypropylene
(PP)
High-density polyethylene
(HDPE)
Air supply pressure range0.2~0.5MPa0.2~0.7MPa

Max discharge pressure

0.5MPa

0.7MPa

 Discharge volume/cycle※4

 13mL

 65mL

 150mL

 300mL

 700mL

Max discharge volume※611L/min27L/min54L/min64L/min95L/min
Max air consumption170
L/min(ANR)
250
L/min(ANR)
350
L/min(ANR)
900
L/min(ANR)
1500
L/min(ANR)
Max slurry diameter※71mm or smaller2mm or smaller3mm or smaller

 Viscosity limit

0.5Pa-s or lower

1Pa-s or lower

 2Pa-s or lower

 2.5Pa-s or lower

Environmental
temperature range

Ambient
temperature range

0~70℃

Liquid
temperature range

0~80℃
Noise level71dB82dB85dB88dB

 90dB

Weight

 3.4kg

 6.7kg

 7.2kg

 14.6kg

15.5kg

 32kg

 52kg

※1:The DP-5F valve is a flat (plate) type.
※2:Since a DP-25F and a DP-38F are to be produced on orders, be sure to check the delivery date.
※3:The suction inlet or discharge outlet of a DP-10F/20F pump can be connected with an NPT screw orANSI flange (custom-designed) as well as a standard RC screw or flange.
※4:The maximum discharged liquid amount and/or self-suction capability are based on the test datameasured with using fresh water at the room temperature (20oC). In addition, the amount of dis-charged liquid varies depending on the supplied air pressure or pump head. Please check the per-formance curve for details.
※5:Use the clean air that has passed through a 1-μm filter or nitrogen gas (N2) as air to be supplied tothe pump.
*When you use a resin pump, it may not offer the designed performance due to significant change oftemperature. To maintain its performance, be careful to install the pump or store its parts.
*Any flat valve type of pumps cannot handle slurry.



Exploded view and Parts list



 Valve type

Connection

Pump size

Screw(PT)

Flange

Ball

5

10

853620

853622

20

853621

853623

25

853601

38

853606

Flat

5

853656

10

853628

853630

20

853629

853631

25

853614

38

853617



Dimensions・Performance Curve




Dimensions
(PDF)


Performance Curve
(PDF)

DP-5FDP-5F、FH
 DP-5FH
DP-10F(Rc)DP-10F
DP-10F(Flange)
DP-20F(Rc)DP-20F
DP-20F(Flange)
DP-25FDP-25F
DP-38FDP-38F




Manuals, CAD datas



Model
Operation manual (PDF)

Maintenance manual (PDF)

CAD data (DXF)

DP-5F

NDP 209U-09NDP 032M-13DP-5F(PT)

DP-5FH

DP-5FH

DP-10FDP-10F(PT)
DP-10F(FL)
DP-20FDP-20F(PT)
DP-20F(FL)
DP-25FDP-25F(FL)
DP-38FDP-38F(FL)
