Yamada® NDP-20 Diaphragm Pump Series 요약정보 및 구매

판매가격 전화문의
배송비결제 주문시 결제

상품 정보

상품 상세설명

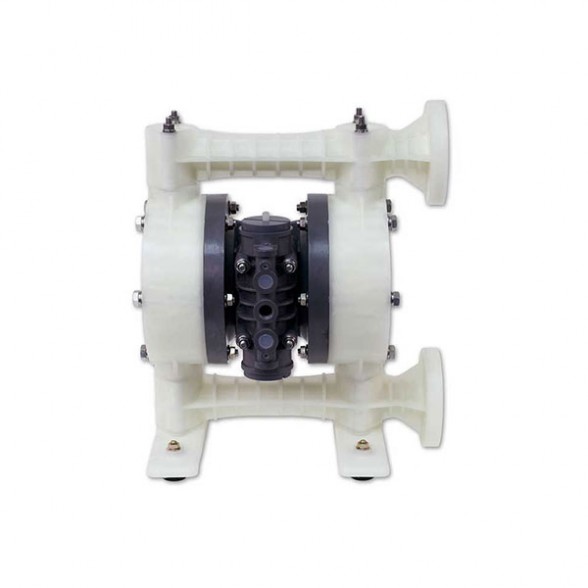

NDP-20 Polypropylene, ANSI Flange

12.44" W x 14.75" H
Net Weight: 17.6 lbs. (8.2 kg)
Shipping Weight: 22.6 lbs.

NDP-20 Polypropylene, NPT
12.44" W x 14.50" H
Net Weight: 17.6 lbs. (8.2 kg)
Shipping Weight: 22.6 lbs.
NDP-20 Metal, NPT
Dimensions: 9.80" W x 12.60" H
Net Weight: 19.8 lbs. (9.0 kg)
Shipping Weight: 23 lbs.
NDP-20 Metal w/Poly Air Motor
Dimensions: 9.80" W x 12.60" H
Net Weight: 30.8 lbs. (13.9 kg)
Shipping Weight: 32 lbs.
NDP-20-PP Polypropylene, NPT
12.44" W x 14.50" H
Net Weight: 17.6 lbs. (8.2 kg)
Shipping Weight: 22.6 lbs.
prev
next


Yamada Trial Pump Program

Yamada® NDP-20 series Air Powered Double Diaphragm (AODD) pumps provide a maximum flow rate of 28 gallons per minute. Pumps are available in aluminum, stainless steel (316), and polypropylene construction, with a wide variety of diaphragm materials.

Unified Air Valve Concept – 2 common size air valve assemblies used for 6 sizes of pumps
Reducing reassembly confusion and parts inventory

Truly No-Lubricated Air Valve – patented air valve on all NDP series pumps
Never requires lubrication or pre-packing

Non-Stalling – patented non-centering, 304SS spring-assisted shifter, ensuring a positive shift every time

Tested to last over 300 million cycles

Aides in long dead head application for reliable startup

What separates Yamada from the rest of the pack is our air valve technology. Yamada uses a completely non-lubricated main air valve and independent pilot mechanisms to control the air logic.

As compressed air enters the pump, it is directed via the main air valve to one side or the other, depending upon the starting position of the c-spool.  As the air enters the chamber, it forces the diaphragm outward. This outward momentum forces liquid out of the discharge ball valve and loads the opposite inlet ball valve. As the diaphragm travels outward, the connected diaphragm on the opposite side is pulling the diaphragm inward.

When it travels a full stroke, it will contact the pilot valve, depressing it and breaking the seal to open an exhaust port.

The open port allows the compressed air to the exhaust from the back side of the air valve. The pressure drop produces a shift of the main air valve. This motion simply repeats on the other side.



GENERAL PUMP INFORMATION

31.7 Gallons/Minute
3/4" NPT Fluid Port



Intake & Discharge Connections
Polypropylene (PPG)
3/4" Female NPT or 3/4" ANSI Flange B16.5 #150
Aluminum (ADC-12)
3/4" Female NPT
Stainless Steel (316)
3/4" Female NPT
Air Inlet3/8" Female NPT (includes ball valve)
Air Exhaust3/4" Female NPT (includes silencer)



Maximum Liquid Temperature1
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene®(TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)
1Polypropylene and acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.



Air Supply Pressure (All Models)20 to 100 PSI (1.4 to 7 kgf/cm²)
Discharge Volume Per Cycle

Rubber diaphragm: 0.163 gallons (615 cc)
PTFE diaphragm: 0.143 gallons (539 cc)

Maximum Cycles Per Minute

Rubber diaphragm: 195
PTFE diaphragm: 195

Maximum Size Solid1/16" (2.0 mm)
Maximum Dry Suction LiftRubber-fitted pump capability: 18-feet
Air MotorStandard: Aluminum
Optional CoatingPTFE-coated
Other OptionsSplit manifold pumps

MATERIAL TYPES

:: Aluminum
Dimensions:9.80" W x 12.60" H
Net Weight:19.8 lbs. (9.0 kg)
Shipping Weight:23 lbs.
:: Polypropylene (ANSI flange)
Dimensions:12.44" W x 14.75" H
Net Weight:17.6 lbs. (8.2 kg)
Shipping Weight:22.6 lbs.
:: Polypropylene (NPT)
Dimensions:12.44" W x 14.50" H
Net Weight:17.6 lbs. (8.2 kg)
Shipping Weight:22.6 lbs.
:: Stainless Steel
Dimensions:9.80" W x 12.60" H
Net Weight:30.8 lbs. (13.9 kg)
Shipping Weight:32 lbs.

ACCESSORIES

Air Motor Kit

K225-AM (metal center body) and K225-AP (plastic center body)

Liquid End Kits

Aluminum: K20-MC-1, K20-MN-1, K20-ME-1, K20-MH-1, K20-MS-1, K20-MV-1, K20-MT-1

Stainless Steel: K20-MC-1, K20-MN-1, K20-ME-1, K20-MH-1, K20-MS-1, K20-MV-1, K20-MT-1

Polypropylene: K20-PC-PP, K20-PN-PP, K20-PE-PP, K20-PH-PP, K20-PS-PP, K20-PV-PP, K20-PT-PP

Filter / Regulators

FR-1 and FR-1A (Auto Drain)

Dampener

AD-25 Series

Liquid Level Controller

LLC-2Y, LLC-1 and LLC-4

Controllers

YSC-3EX and YSC-Batch

Diaphragm Monitor System

DM-2

DRy Run Detector

DRD-100

The Yamada Advantage

Yamada Air Powered Double Diaphragm Pumps: Engineered for High Performance. Manufactured for Long Life.

Rugged, Bolted Construction

All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly. Bolted construction is superior to clamp band retainers, which frequently require frustrating, unnecessary leakage rebuilds from misalignment during reassembly.

Patented Air Valve Technology

Incorporated in every Yamada Air Powered Double Diaphragm pump

Yamada air valve technology is the heart of the air-powered double diaphragm pump and determines reliability. Yamada holds three patents on its field proven valve and enjoys a superior reputation throughout the industry.

Why Specify an AODD Pump?

  • Handles a wide variety of fluids with high solids content
  • Self priming
  • Ability to run dry
  • Variable flow rate and discharge pressure
  • Portable/simple installation
  • Dead head
  • Shear sensitive
  • Safe operation
  • Submersible
  • Pumping efficiency remains constant
