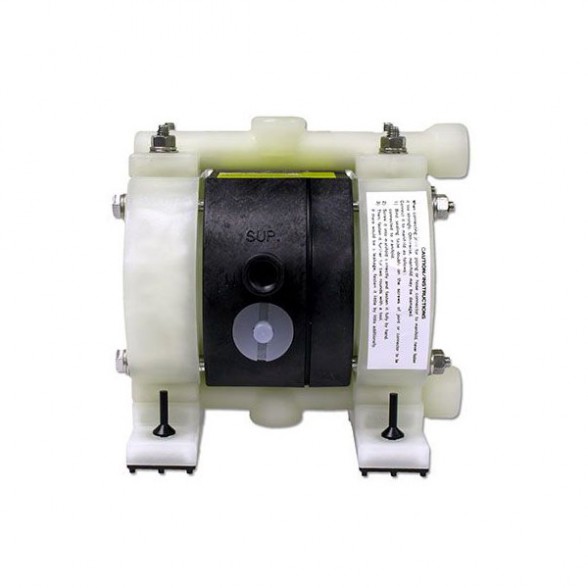

NDP-5 POLYPROPYLENE NPT

Dimensions: 6.14" W x 5.79" H
Net Weight: 3.0 lbs. (1.36 kg)
Shipping Weight: 4 lbs.

NDP-5 POLYPROPYLENE CENTER PORT
Dimensions: 6.14" W x 5.79" H
Net Weight: 3.0 lbs. (1.36 kg)
Shipping Weight: 4 lbs.
NDP-5 METAL NPT
Dimensions: 6.1" W x 5.87" H
Net Weight: 5.9 lbs. (2.68 kg)
Ship Weight: 6.9 lbs.
NDP-5 POLYPROPYLENE SPLIT MANIFOLD
Dimensions: 6.6" W x 5.87" H
Net Weight: 3.0 lbs. (1.36 kg)
Ship Weight: 4 lbs.
prev
next


Yamada Trial Pump Program

Yamada® NDP-5 series Air Powered Double Diaphragm (AODD) pumps provide a maximum flow rate of 3.4 gallons per minute. Pumps are available in aluminum, stainless steel(316), Kynar®(PVDF), groundable acetal, and polypropylene construction.

What separates Yamada from the rest of the pack is our air valve technology. Yamada uses a completely non-lubricated main air valve and independent pilot mechanisms to control the air logic.

As compressed air enters the pump, it is directed via the main air valve to one side or the other, depending upon the starting position of the c-spool.  As the air enters the chamber, it forces the diaphragm outward. This outward momentum forces liquid out of the discharge ball valve and loads the opposite inlet ball valve. As the diaphragm travels outward, the connected diaphragm on the opposite side is pulling the diaphragm inward.

When it travels a full stroke, it will contact the pilot valve, depressing it and breaking the seal to open an exhaust port.



The open port allows the compressed air to the exhaust from the back side of the air valve. The pressure drop produces a shift of the main air valve. This motion simply repeats on the other side.

GENERAL PUMP INFORMATION

3.4 Gallons/Minute Max.
1/4" NPT Fluid Port
Intake & Discharge Connection1/4" Female NPT
Air Inlet1/4" Female NPT (includes ball valve)
Air Exhaust3/8" Female NPT (includes silencer)
Air Supply Pressure (All Models)20 to 100 PSI (1.4 to 7 kgf/cm2)
Discharge Volume Per Cycle0.0085 gallons (35 cc)
Maximum Cycles Per MinuteAll diaphragms: 400
Maximum Dry Suction Lift5-feet
Air MotorStandard: Ryton® Air Motor



Maximum Liquid Temperature Fitted with PTFE diaphragm
Groundable Acetal 180F (82C)
Polypropylene (PPG) 180F (82C)
Kynar® (PVDF) 212F (100C)
Aluminum (ADC-12) 212F (100C)
Stainless Steel (316) 212F (100C)

MATERIAL TYPE

:: Aluminum
Dimensions:6.1" W x 5.87" H
Net Weight:3.3 lbs. (1.5 kg)
Shipping Weight:4.3 lbs.
:: Kynar® (PVDF)
Dimensions:6.14" W x 5.79" H
Net Weight:3.7 lbs. (1.67 kg)
Shipping Weight:4.7 lbs.
:: Groundable Acetal
Dimensions:6.14" W x 5.79" H
Net Weight:3.7 lbs. (1.67 kg)
Shipping Weight:4.7 lbs.
:: Stainless Steel
Dimensions:6.1" W x 5.87" H
Net Weight:5.9 lbs. (2.68 kg)
Shipping Weight:6.9 lbs.
:: Polypropylene
Dimensions:6.14" W x 5.79" H
Net Weight:3.0 lbs. (1.36 kg)
Shipping Weight:4 lbs.

ACCESSORIES

Air Motor Kit

K5-AM

Liquid End Kits
Aluminum:K5-MT
Kynar:K5-VT-2
Groundable Acetal:K5-DT
Stainless Steel:K5-MT
Polypropylene:K5-PT
Filter / Regulators

FR-1

FR-1A (Auto Drain)

Dampener

AD-10 Series

Liquid Level Controller

LLC-2Y and LLC-3

Controllers

YSC-3EX and YSC-Batch

Diaphragm Monitor System

DM-2

DRy Run Detector

DRD-100

The Yamada Advantage

Yamada Air Powered Double Diaphragm Pumps: Engineered for High Performance. Manufactured for Long Life.

Rugged, Bolted Construction

All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly. Bolted construction is superior to clamp band retainers, which frequently require frustrating, unnecessary leakage rebuilds from misalignment during reassembly.

Patented Air Valve Technology

Incorporated in every Yamada Air Powered Double Diaphragm pump

Yamada air valve technology is the heart of the air-powered double diaphragm pump and determines reliability. Yamada holds three patents on its field proven valve and enjoys a superior reputation throughout the industry.

Why Specify an AODD Pump?

  • Handles a wide variety of fluids with high solids content
  • Self priming
  • Ability to run dry
  • Variable flow rate and discharge pressure
  • Portable/simple installation
  • Dead head
  • Shear sensitive
  • Safe operation
  • Submersible
  • Pumping efficiency remains constant
