NDP-40 Aluminum, ANSI Flange
Dimensions: 16.18" W x 27.91" H
Net Weight: 68 lbs. (28.9 kg)
Shipping Weight: 75 lbs.
NDP-40 Cast Iron, NPT
Dimensions: 16.18" W x 27.75" H
Net Weight: 112 lbs. (59.8 kg)
Shipping Weight: 120 lbs.
NDP-40 Polypropylene, ANSI Flange
Dimensions: 15.75" W x 29.61" H
Net Weight: 70 lbs. (29.9 kg)
Shipping Weight: 78 lbs.
NDP-40 Kynar, ANSI Flange
Dimensions: 15.75" W x 29.61" H
Net Weight: 70 lbs. (29.9 kg)
Shipping Weight: 78 lbs.
NDP-40 Stainless Steel, NPT
Dimensions: 16.18" W x 27.75" H
Net Weight: 98 lbs. (39.9 kg)
Shipping Weight: 106 lbs.
NDP-40 Stainless Steel, ANSI Flange
Dimensions: 16.18" W x 27.75" H
Net Weight: 98 lbs. (39.9 kg)
Shipping Weight: 106 lbs.
prev
next


Yamada Trial Pump Program

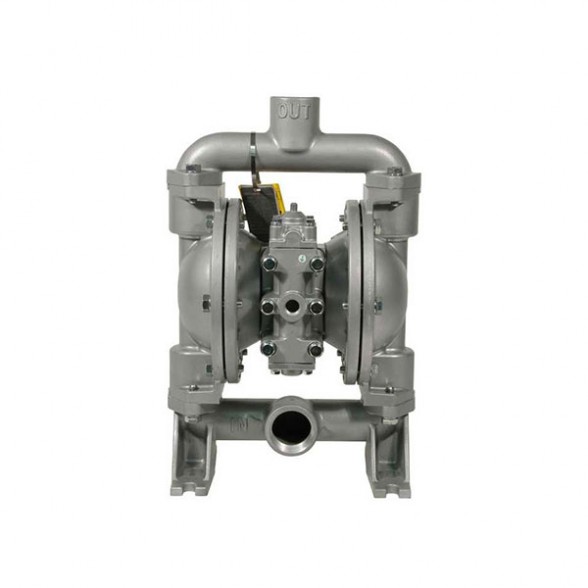

Yamada® NDP-40 series Air Powered Double Diaphragm (AODD) pumps provide a maximum flow rate of 116 gallons per minute. Pumps are available in aluminum, stainless steel (316), Kynar® (PVDF), groundable acetal, and polypropylene construction.

What separates Yamada from the rest of the pack is our air valve technology. Yamada uses a completely non-lubricated main air valve and independent pilot mechanisms to control the air logic.

As compressed air enters the pump, it is directed via the main air valve to one side or the other, depending upon the starting position of the c-spool.  As the air enters the chamber, it forces the diaphragm outward. This outward momentum forces liquid out of the discharge ball valve and loads the opposite inlet ball valve. As the diaphragm travels outward, the connected diaphragm on the opposite side is pulling the diaphragm inward.

When it travels a full stroke, it will contact the pilot valve, depressing it and breaking the seal to open an exhaust port.

The open port allows the compressed air to the exhaust from the back side of the air valve. The pressure drop produces a shift of the main air valve. This motion simply repeats on the other side.



ACCESSORIES

Air Motor Kit

K45-AM

Liquid End Kits

Aluminum: K40-MC, K40-MN, K40-ME, K40-MH, K40-MS, K40-MV, K40-MT

Stainless Steel: K40-MC, K40-MN, K40-ME, K40-MH, K40-MS, K40-MV, K40-MT

Cast Iron: K40-MC, K40-MN, K40-ME, K40-MH, K40-MS, K40-MV, K40-MT

Polypropylene: K40-PC, K40-PN, K40-PE, K40-PH, K40-PS, K40-PV, K40-PT

Kynar: K40-VS-1, K40-VT-1

Filter / Regulators

FR-4 and FR-4A (Auto Drain)

Dampener

AD-40 Series

Liquid Level Controller

LLC-2Y, LLC-1 and LLC-1010

Controllers

YSC-3EX and YSC-Batch

Diaphragm Monitor System

DM-2

DRy Run Detector

DRD-100

The Yamada Advantage

Yamada Air Powered Double Diaphragm Pumps: Engineered for High Performance. Manufactured for Long Life.

Rugged, Bolted Construction

All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly. Bolted construction is superior to clamp band retainers, which frequently require frustrating, unnecessary leakage rebuilds from misalignment during reassembly.

Patented Air Valve Technology

Incorporated in every Yamada Air Powered Double Diaphragm pump

Yamada air valve technology is the heart of the air-powered double diaphragm pump and determines reliability. Yamada holds three patents on its field proven valve and enjoys a superior reputation throughout the industry.

Why Specify an AODD Pump?

  • Handles a wide variety of fluids with high solids content
  • Self priming
  • Ability to run dry
  • Variable flow rate and discharge pressure
  • Portable/simple installation
  • Dead head
  • Shear sensitive
  • Safe operation
  • Submersible
  • Pumping efficiency remains constant
