E5 1/2" DIAPHRAGM PUMP 요약정보 및 구매

판매가격 전화문의
배송비결제 주문시 결제

상품 정보

상품 상세설명

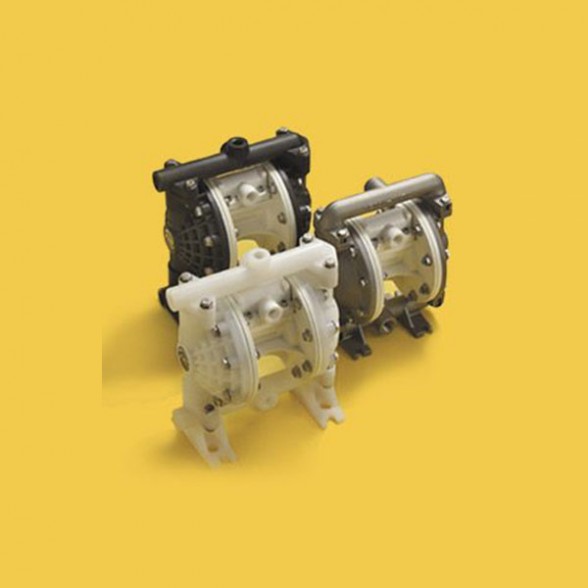

E5 1/2" PumpsLeak-free bolted construction provides a greater positive seal with Versa-Matic's E5 1/2" pump. Elima-Matic®'s air valve system provides the reliability you need and lets you transfer chemicals safely and confidently.
The E5 1/2" Pump...

  • is available in plastics and metals
  • offers a corrosion-resistant air section
  • provides variable porting options
  • footprint interchanges with competitor models
  • is self-priming and can run dry

Download information from our literature page

specifications

 EnglishMetric
Flow Rate
adjustable to0-14 gpm0-53 lpm
Port Size
Inlet0.50" NPT
Discharge0.50" NPT
Air Inlet0.375" NPT
Air Exhaust0.375" NPT
Suction Lift
15' Dry/25' Wet (6.096m/7.62m)
PTFE: 5' Dry/10' Wet (1.52/3.048m)
Max. Particle Size
(Diameter)0.0625"1.6mm
Shipping Weights
Stainless Steel18 lbs8.17 kg
Hastelloy C18 lbs8.17 kg
Aluminum15 lbs6.8 kg
Polypropylene10 lbs4.54 kg
Kynar®10 lbs4.54 kg
Groundable Acetal10 lbs4.54 kg
