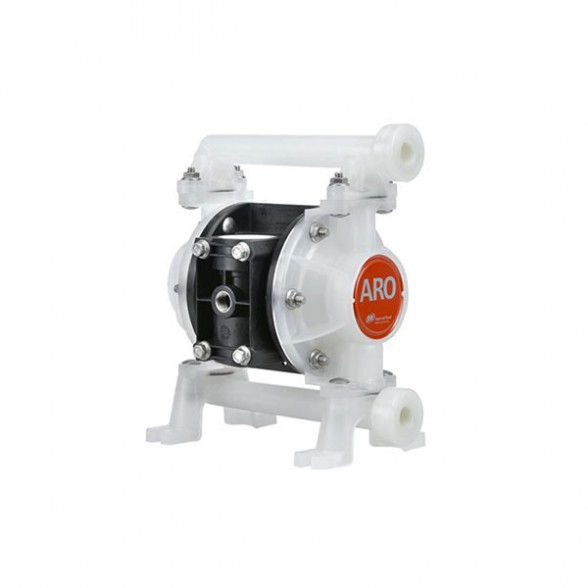

3/8" Non-Metallic
PD03P-XXS-XXX
Maximum Flow gpm (lpm): 10.6 (40.1)
Maximum Discharge Pressure psi (bar): 100 (6.8)
Fluid Ports Inlet/Outlet (bsp): 3/8" (F) - In/Out
Material of Construction: Polypropylene, Groundable, Acetal, PVDF
Maximum Solids in (mm): 1/16 (1.6)
Maximum Dry Suction Lift ft (m): 9.25 (2.8)
Part of our Compact Series of pumps, our 3/8” pumps feature big performance in a small package. They feature flow rates up to 10.6 GPM (40.1 LPM) and a wide range of material and porting configurations.
- A favorite of OEM's around the world.
- Big delivery in a small package.
- Manufactured for complete corrosion resistance - constructed with polypropylene center body, standard stainless steel fasteners, and your choice of PVDF, Polypropylene, or Groundable Acetal casing materials
- Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
- Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
- Versatility - Center, End, and Dual Inlet / Outlet manifold configurations for your application needs
- Environmentally Sound - Bolted construction for leak-free fluid handling
- Serviceability - Ease of service through modular design
- 66073-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
- 67388 Wall Mount Bracket
- 66975 Cycle Counter Kit
- 637442-X Dual Inlet / Outlet Kits
- 67165-X Cycle Actuation Kit
- 67386 Cycle Sensor Kit
- 637428 Air Section Service Kit
- 637429-XX Fluid Section Service Kit
Pump Casing Materials
- Polypropylene
- PVDF (Kynar)
- Groundable Acetal
Diaphragm Materials
- Santoprene
- Hytrel
- PTFE w/ Santoprene backer
- Viton
Ratio: 1:1
Maximum Flow: 10.6 g.p.m. (40.1 l.p.m.) 8.7 (32.9) Flex check
Displacement per cycle:
0.022 Gallons (0.083-Liters)
0.018 (0.068) Flex check
Air Inlet: (Female) 1/4 - 18 P.T.F. SAE Short
Fluid Inlet/Outlet:
3/8 - 18 N.P.T.F. - 1
Rp 3/8 (3/8 - 19 BSP, parallel)
Max. operating pressure: 100 psi (6.9-bar)
Suspended solids max. dia.: 1/16-in. (1.6-mm) Flex check (Fibers)
Weight: lbs (kg)
PD03P-XDS-XXX 4.2 (1.9)
PD03P-XES-XXX 4.3 (1.9)
PD03P-XKS-XXX 4.5 (2.0)
PD03P-XLS-XXX 4.6 (2.1)
PD03P-XPS-XXX 3.4 (1.6)
PD03P-XRS-XXX 3.5 (1.6)
Maximum dry suction lift: ft (m) 9.25 (2.8)
Sound Level: 70 PSI 60 Cycles/Min 72.7 db(A)
Muffler: Integral, Included
