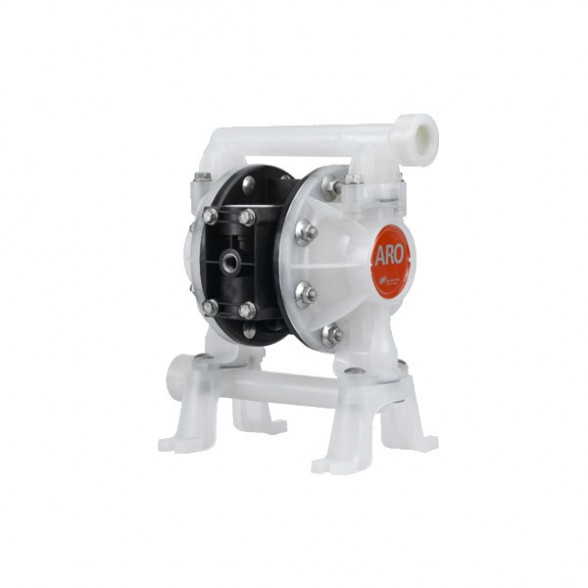

3/4" EXPert Series Non-Metallic Diaphragm Pump 요약정보 및 구매

판매가격 전화문의
배송비결제 주문시 결제

상품 정보

상품 상세설명



3/4" Non-Metallic

PD07P-XXS-XXX



Maximum Flow gpm (lpm): 14.8 (56)
Maximum Discharge Pressure psi (bar): 100 (6.8)
Fluid Ports Inlet/Outlet (bsp):
3/4 - 14 N.P.T.F.-1
Rp 3/4(3/4-14 BSP, parallel)

Material of Construction: Polypropylene
Maximum Solids in (mm): 3/32 (2.4)
Maximum Dry Suction Lift ft (m): 15 (4.5)



Part of our Compact Series of pumps, our 3/4” pumps feature big performance in a small package. They offer flow rates up to 14.8 GPM (56 LPM) and a wide range of material and porting configurations.

Features

  • Designed to meet your OEM application needs.
  • Install directly onto your 3/4" application, saving you a fitting and a possible leak point.
  • Manufactured for complete corrosion resistance - constructed with polypropylene center body, standard stainless steel fasteners, and polypropylene casing materials
  • Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
  • Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
  • Versatility - Compact design enables usage in limited space and other versatile locations
  • Environmentally Sound - Bolted construction for leak-free fluid handling
  • Serviceability - Easier service through modular design

Accessories

  • 66073-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5' section of hose
  • 637438 Ported Exhaust Kit
  • 93110 Air Motor Muffler
  • 76763 Wall Mount Bracket
  • 637428 Air Section Service Kit
  • 637427-XX Fluid Section Service Kit

Pump Casing Materials

  • Polypropylene

Diaphragm Materials

  • Santoprene
  • Hytrel
  • PTFE w/ Santoprene backer

Ratio: 1:1

Maximum Flow: 14.8 g.p.m. (56 l.p.m.)

Displacement per cycle: 0.032 Gallons (0.12 Liters)

Air Inlet:  (Female) 1/4 - 18 P.T.F. SAE Short

Fluid Inlet/Outlet:
1/2 - 14 N.P.T.F. - 1
Rp 1/2 (1/2 -14 BSP, parallel)

Max. operating pressure: 100 psi (6.9 bar)

Suspended solids max. dia.: 3/32” (2.4 mm)

Weight:  lbs (kg) 5.61 (2.54)

Maximum dry suction lift: ft (m)  15.0 (4.5)

Sound Level: 70 PSI    60 Cycles/Min   75.0 db(A)

Muffler:     Integral, Included
