ALL-FLO 1" AIR DIAPHRAGM PUMP 요약정보 및 구매

판매가격 전화문의
배송비결제 주문시 결제

상품 정보

상품 상세설명

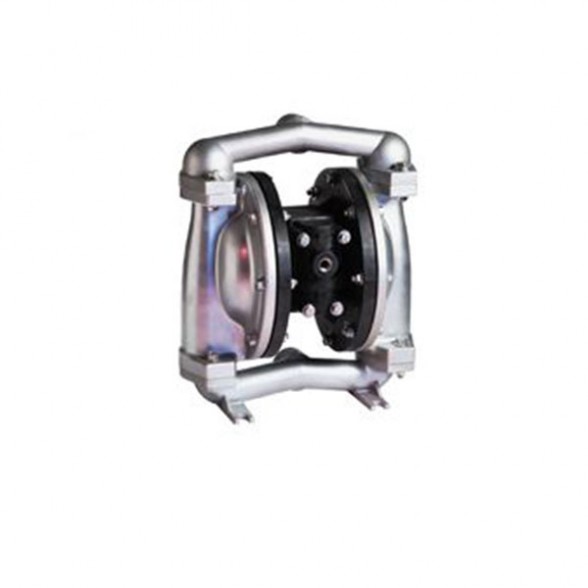

1” A100 Aluminum

Up to 41 GPM

Elastomer Available in: Geolast®, Santoprene®, PTFE, Viton, Nitrile
Liquid Connections Available in: NPT, BSPT
Max Solids: 1/4 Inch (6.4mm)
Max Suction Lift (Dry): 17ft-H20 (5.2m)
Max Suction Lift (Wet): 30ft-H20 (9.1m)
Air Inlet: 1/2 Inch FNPT

1” A100 Aluminum

Part No.Fluid EndAir EndDiaphragmsValve/BallValve SeatsO-RingsConnection TypeFluid Porting
A100-BAA-GGPN-B30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.BSPBSP ConnectionSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-BAA-GTPN-B30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PTFEThermoplastic material that is inert to most chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.BSPBSP ConnectionSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-BAA-NNPN-B30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumNitrileGeneral purpose elastomer used on water and most non synthetic oils.NitrileGeneral purpose elastomer used on water and most non synthetic oils.PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.BSPBSP ConnectionSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-BAA-SSPE-B30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumSantoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. BSPBSP ConnectionSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-BAA-TTYT-B30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumPTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. NylonA non-metallic material, suitable for most solvents and oils. PTFEThermoplastic material that is inert to most chemicals. BSPBSP ConnectionSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-BAA-VVYV-B30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumViton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NylonA non-metallic material, suitable for most solvents and oils. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. BSPBSP ConnectionSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-NAA-GGPN-B30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPTSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-NAA-GTPN-B30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PTFEThermoplastic material that is inert to most chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPTSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-NAA-NNPN-B30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumNitrileGeneral purpose elastomer used on water and most non synthetic oils.NitrileGeneral purpose elastomer used on water and most non synthetic oils.PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPTSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-NAA-SSPE-B30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumSantoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. NPTSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-NAA-TTYT-B30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumPTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. NylonA non-metallic material, suitable for most solvents and oils. PTFEThermoplastic material that is inert to most chemicals. NPTSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-NAA-VVYV-B30AluminumGeneral Purpose metal, suitable for water, oils, most solvents, most paints. AluminumAluminumViton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NylonA non-metallic material, suitable for most solvents and oils. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NPTSuction Center Front/Discharge Center Rear

1" A100 Stainless Steel

Up to 41 GPM

Elastomer Available in: Geolast®, Santoprene®, PTFE, Viton
Liquid Connections Available in: NPT, BSPT
Max Solids: 1/4 Inch (6.4mm)
Max Suction Lift (Dry): 17ft-H20 (5.2m)
Max Suction Lift (Wet): 30ft-H20 (9.1m)
Air Inlet: 1/2 Inch FNPT

1" A100 Stainless Steel

Part No.Fluid EndAir EndDiaphragmsValve/BallValve SeatsO-RingsConnection TypeFluid Porting
A100-BA3-GG3N-B70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.BSPBSP ConnectionSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-BA3-VV3V-B70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumViton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. BSPBSP ConnectionSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-NA3-GG3N-B70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumGeolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPTSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-NA3-SS3E-B70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumSantoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. NPTSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-NA3-TT3T-B70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumPTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. PTFEThermoplastic material that is inert to most chemicals. NPTSuction Center Front/Discharge Center RearSuction Center Front/Discharge Center Rear
A100-NA3-VV3V-B70Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. AluminumAluminumViton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NPTSuction Center Front/Discharge Center Rear

1” A100 Polypropylene

Up to 41 GPM

Elastomer Available in: Geolast®, Santoprene®, PTFE, Viton
Liquid Connections Available in: ANSI/DIN Flange, FNPT, FBSPT
Max Solids: 1/4 Inch (6.4mm)
Max Suction Lift (Dry): 15ft-H20 (4.5m)
Max Suction Lift (Wet): 26ft-H20 (7.9m)
Air Inlet: ¼ Inch FNPT

1” A100 Polypropylene

Part No.Fluid EndAir EndDiaphragmsValve/BallValve SeatsO-RingsConnection TypeFluid Porting
A100-CPP-GGPN-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPT & ANSI / DIN FlangeNPT & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-CPP-SSPE-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. NPT & ANSI / DIN FlangeNPT & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-CPP-TTPT-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. PTFEThermoplastic material that is inert to most chemicals. NPT & ANSI / DIN FlangeNPT & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-CPP-VVPV-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NPT & ANSI / DIN FlangeNPT & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-EPP-GGPN-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.BSP & ANSI / DIN FlangeBSP & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-EPP-SSPE-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. BSP & ANSI / DIN FlangeBSP & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-EPP-TTPT-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. PTFEThermoplastic material that is inert to most chemicals. BSP & ANSI / DIN FlangeBSP & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-EPP-VVPV-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. BSP & ANSI / DIN FlangeBSP & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-FPP-GGPN-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.ANSI / DIN FlangeANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-FPP-SSPE-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. ANSI / DIN FlangeANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-FPP-TTPT-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. PTFEThermoplastic material that is inert to most chemicals. ANSI / DIN FlangeANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-FPP-VVPV-S70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. ANSI / DIN FlangeANSI / DIN Flange ConnectionSuction Right/Discharge Right

1” C100 Polypropylene Clamped Style Pump

Up to 41 GPM

Elastomer Available in: Geolast®, Santoprene®, PTFE, Viton
Liquid Connections Available in:ANSI/DIN Flange, FNPT, FBSPT
Max Solids: 1/4 Inch (6.4mm)
Max Suction Lift (Dry): 15ft-H20 (4.5m)
Max Suction Lift (Wet): 26ft-H20 (7.9m)
Air Inlet: ¼ Inch FNPT

1” C100 Polypropylene Clamped Style Pump

Part No.Fluid EndAir EndDiaphragmsValve/BallValve SeatsO-RingsConnection TypeFluid Porting
C100-BPP-GGPN-G70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.BSPBSP ConnectionSuction Center Rear/Discharge Center RearSuction Center Rear/Discharge Center Rear
C100-BPP-SSPE-G70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. BSPBSP ConnectionSuction Center Rear/Discharge Center RearSuction Center Rear/Discharge Center Rear
C100-BPP-TTPT-G70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. PTFEThermoplastic material that is inert to most chemicals. BSPBSP ConnectionSuction Center Rear/Discharge Center RearSuction Center Rear/Discharge Center Rear
C100-BPP-VVPV-G70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. BSPBSP ConnectionSuction Center Rear/Discharge Center RearSuction Center Rear/Discharge Center Rear
C100-NPP-GGPN-G70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. NitrileGeneral purpose elastomer used on water and most non synthetic oils.NPTSuction Center Rear/Discharge Center RearSuction Center Rear/Discharge Center Rear
C100-NPP-SSPE-G70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. EPDMGeneral purpose elastomer with good resistance to many acids and basis. NPTSuction Center Rear/Discharge Center RearSuction Center Rear/Discharge Center Rear
C100-NPP-TTPT-G70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. PTFEThermoplastic material that is inert to most chemicals. NPTSuction Center Rear/Discharge Center RearSuction Center Rear/Discharge Center Rear
C100-NPP-VVPV-G70PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Polypropylene (Glass filled)Polypropylene (Glass filled)Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NPTSuction Center Rear/Discharge Center Rear

1” A100 PVDF

Up to 41 GPM

Elastomer Available in: Santoprene®, PTFE, Viton
Liquid Connections Available in: ANSI/DIN Flange
Max Solids: 1/4 Inch (6.4mm)
Max Suction Lift (Dry): 15ft-H20 (4.5m)
Max Suction Lift (Wet): 26ft-H20 (7.9m)
Air Inlet: ¼ Inch FNPT

1” A100 PVDF

Part No.Fluid EndAir EndDiaphragmsValve/BallValve SeatsO-RingsConnection TypeFluid Porting
A100-CPK-SSKE-S70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. EPDMGeneral purpose elastomer with good resistance to many acids and basis. NPT & ANSI / DIN FlangeNPT & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-CPK-TTKT-S70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. PTFEThermoplastic material that is inert to most chemicals. NPT & ANSI / DIN FlangeNPT & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-CPK-VVKV-S70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Polypropylene (Glass filled)Polypropylene (Glass filled)Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. NPT & ANSI / DIN FlangeNPT & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-EPK-SSKE-S70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. EPDMGeneral purpose elastomer with good resistance to many acids and basis. BSP & ANSI / DIN FlangeBSP & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-EPK-TTKT-S70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Polypropylene (Glass filled)Polypropylene (Glass filled)PTFEThermoplastic material that is inert to most chemicals. PTFEThermoplastic material that is inert to most chemicals. PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. PTFEThermoplastic material that is inert to most chemicals. BSP & ANSI / DIN FlangeBSP & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-EPK-TTKT-S70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Polypropylene (Glass filled)Polypropylene (Glass filled)Viton®Elastomer with good chemical resistance to a wide variety of chemicals. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Viton®Elastomer with good chemical resistance to a wide variety of chemicals. BSP & ANSI / DIN FlangeBSP & ANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-FPK-SSKE-S70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. Polypropylene (Glass filled)Polypropylene (Glass filled)Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. EPDMGeneral purpose elastomer with good resistance to many acids and basis. ANSI / DIN FlangeANSI / DIN Flange ConnectionSuction Right/Discharge RightSuction Right/Discharge Right
A100-FPK-TTKT-S70PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases.
